User Manual Rev.0.0

Xlite200 Smart Tail Light

DongGuan Enfitnix Technology Co., Ltd.

Please Note: Specification are subject to change without notices.

© 2021by Enfitnix Technology.

1. Product Specification

Product Name: Xlite200 Smart Bicycle Tail Light

Dimensions: D:34.5mm H: 31mm

Fig1

Mode: 6 Flash modes

Max Luminous Flux: 30Lm

Battery: 400mAh rechargeable Lithium-ion battery

Run Time: 2~21hrs

Weight: 31g(Saddle mount), 34g(Seat post mount)

Color: Black, Metal

Waterproof: IPx6

Input: DC 5V 300mA

2. Product description

Fig2

3. Accessories

Fig3

4. Operation and functionality

Xlite200 integrated with a six-axis men’s sensor (Accelerometer and Gyroscope) which allow the light to detect if the bike is slowing down. The additional Gyroscope allow better response on bike angle change and therefore ensure more accurate braking detection. The  32-bit ARM processor ensure quicker response to braking.

The Xlite200 is able detect the ambient light intensity and automatically to adjust the output power to maximize the battery life.

The Xlite200 also inherit the feature from it's product family - Auto start when motion is detected and Auto switch off if no motion is detected for about 10s.

Function bottom

The functionality of the front button is described as below:

Note:

*The “AUTO”Mode indicator will start to blink when operate under Auto mode.

**The light will be reactivated in “Auto” mode if motion detected.

Operation and functionality are described shown as below:

Fig4

5. Installation

Seatpost mount

1. Tighten the Seatpost Mount Bracke with an o-ring rubber .

Fig5

2. Fit the light on the seatpost with rubber band.

Fig6

Saddle mount

1. Place the mounting bracket on the seat rails and tighten the zip-ties. Cut excess length off if need.

Fig7

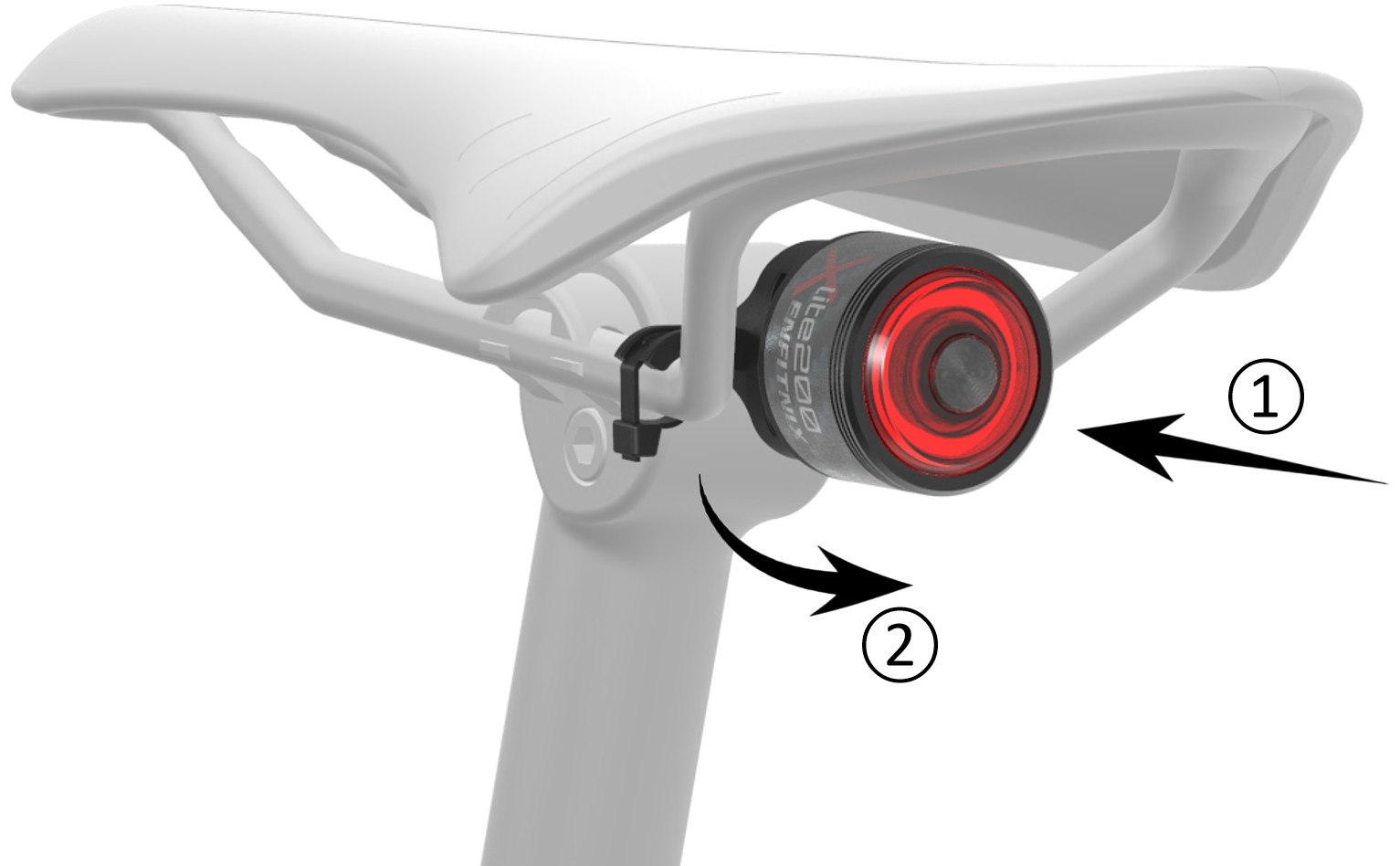

2. Insert the Xlite200 and turn clockwise or anti-clockwise until the light is click-in.

Fig8

6. Charge the battery

The Xlite200 need to be charge when the low battery indicator is light up as in Fig4

To charge the battery, release the light by rotating the light about 90° clockwise or anti-clockwise. Open the seal and charge the battery by the USB Type C calbe. The battery will be fully charged in about 2~3 hours. A green light will be turned on if charge completed.

Fig9

7. Warranty

The tail light is covered by one year warranty.
