1. Product Specification

Product Name: CubeLite II Smart Bicycle Tail Light

Dimensions:

Mode: Flash, Breath, Constant on

Luminous Flux: 30Lm

Battery: 400mAh rechargeable Lithium-ion battery

Run Time: Flash mode>30hrs, breath>14hrs, Constant>10hrs

Weight: 31g (Saddle mount), 36g (Seat post mount)

Color: Black, Red, Metal

Waterproof: IPx5

Input: DC 5V 300mA

2.Product description

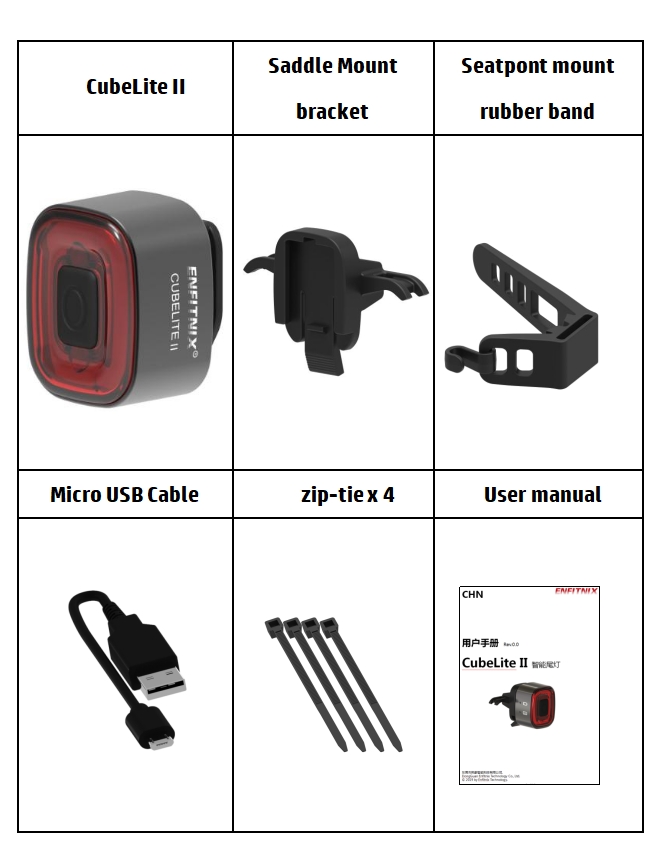

3. 配件

4. Operation and functionality

Cubelite II integrated with a six-axis men’s sensor (Accelerometer and Gyroscope) which allow the light to detect if the bike is slowing down. The additional Gyroscope allow better response on bike angle change and therefore ensure more accurate braking detection. The upgraded 32-bit ARM processor ensure quicker response to braking.

The Cubelite II is able detect the ambient light intensity and automatically switching between the day running light and night light mode.

The Cubelite II also inherit the feature from it's product family - Auto start when motion is detected and Auto switch off if no motion is detected for 10s.

Front bottom

The functionality of the front bottom is described as below:

Operation	Function
Single Click	Change the flash mode
Double Click*	Switch between Auto and Manual mode
Press down for more than 1s	Switch off **

Note:

*The “AUTO”LED indicator will start to blink when operate under Auto mode.

**The light will be reactivated in “Auto” mode if motion detected.

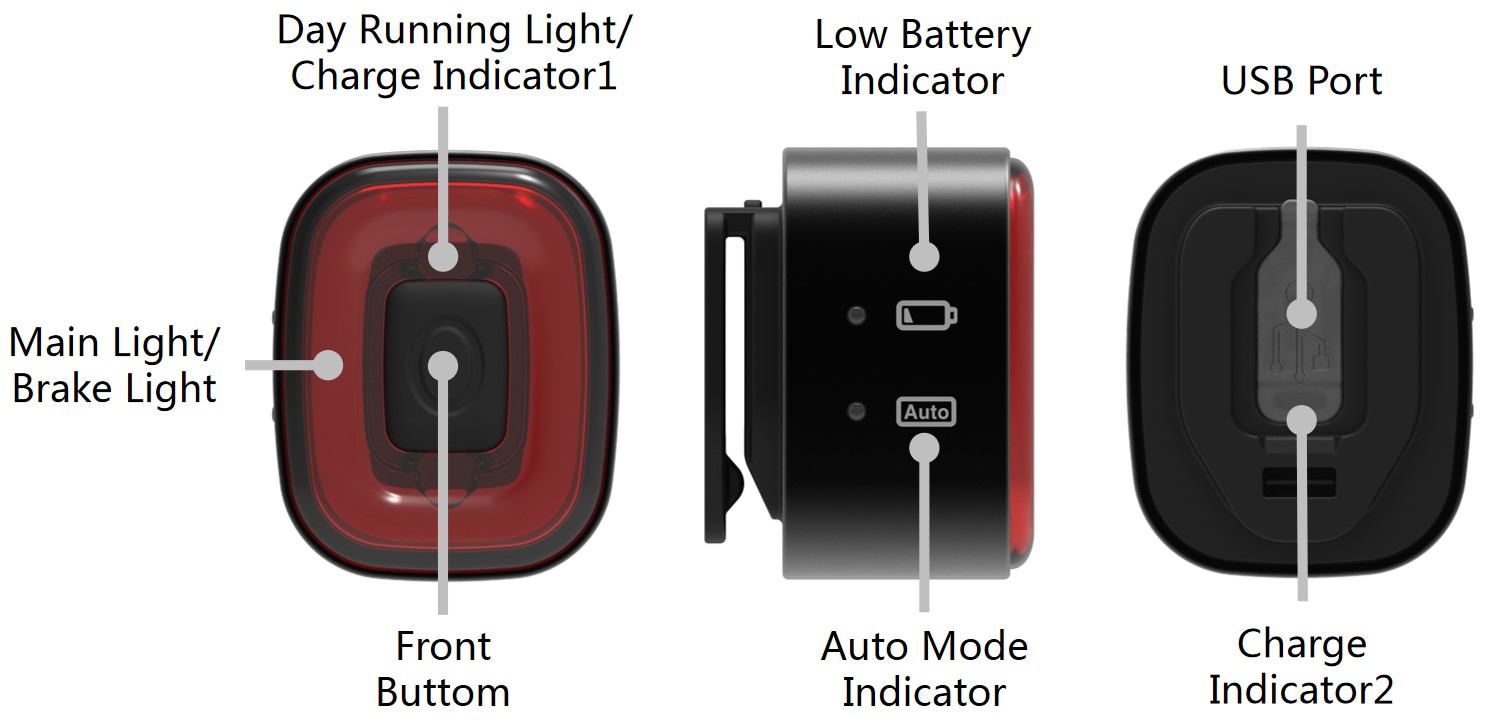

Operation and functionality are described shown as below:

5. Installation

Seatpost mount

1. Insert the light into the rubber band.

2. Fit the light on the seatpost with rubber band.

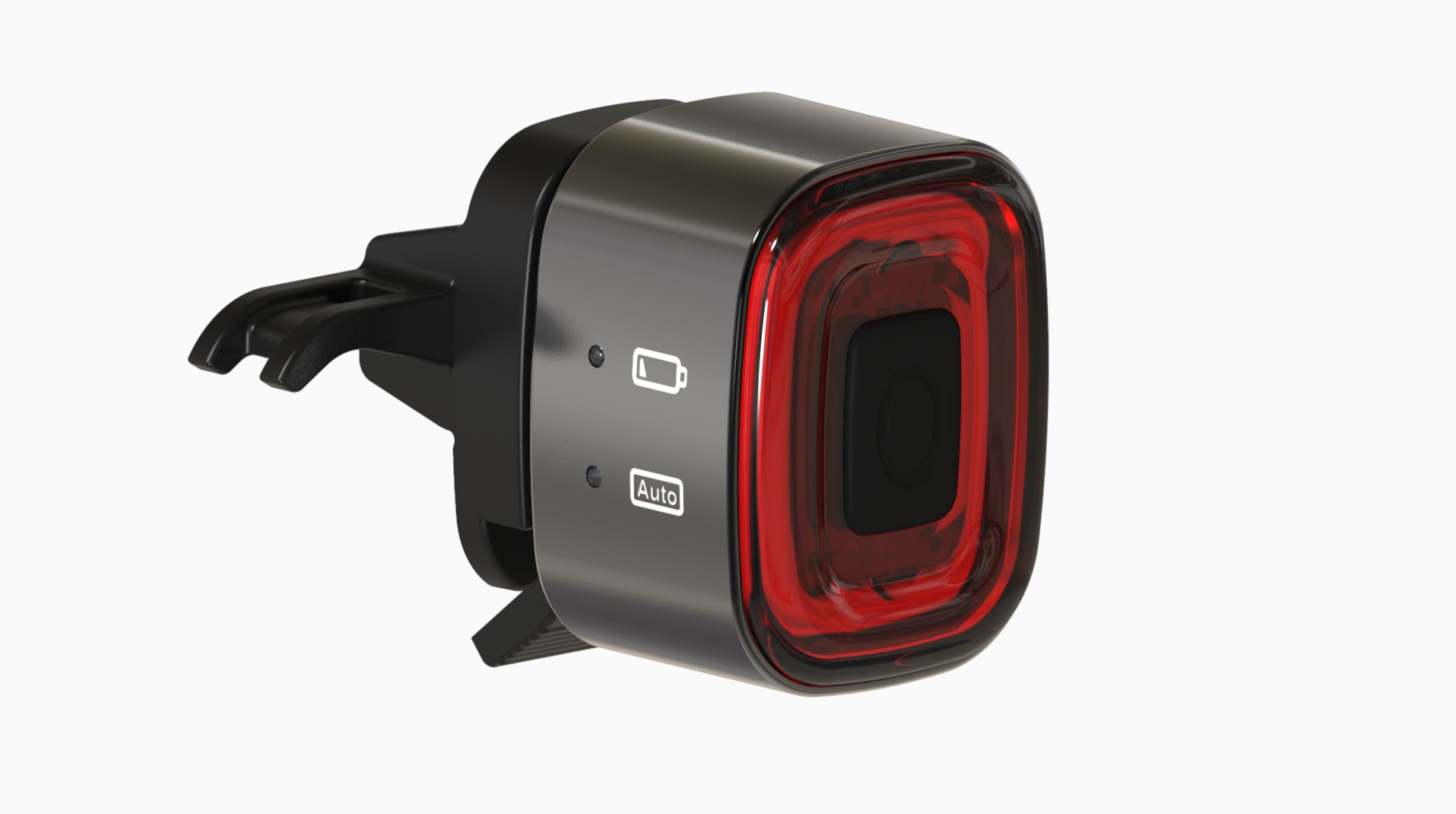

Saddle mount

1. Place the mounting bracket on the seat rails and tighten the zip-ties. Cut excess length off if need.

2. Slide upward until the light is click-in.

6. Charge the battery

The Cubelite II need to be charge when the low battery indicator is light up.

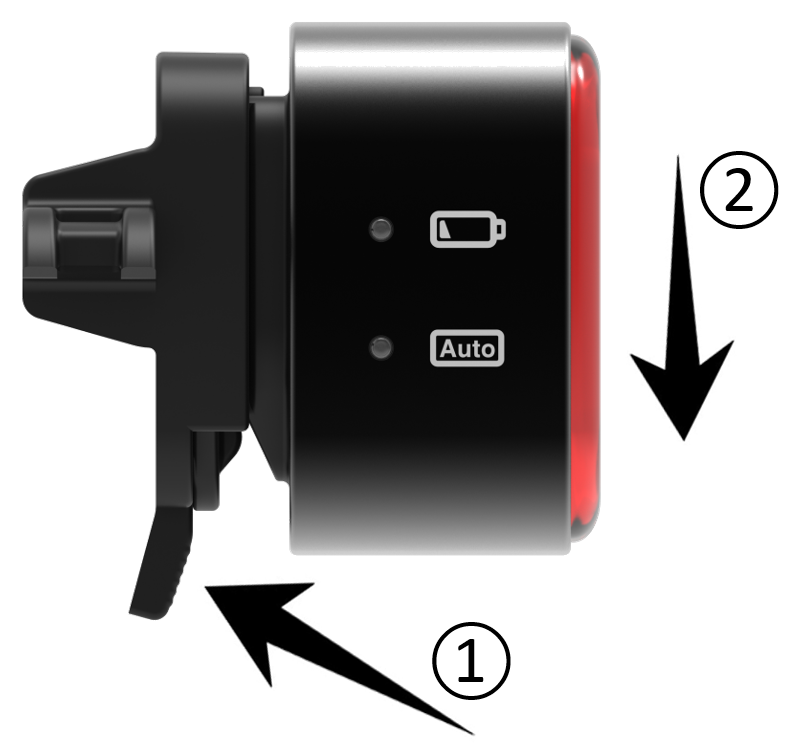

To charge the battery, press the click ① and remove the light downward ②. Open the seal and charge the battery by the USB micro port③. The battery will be fully charged in about 2 hours. A green light next to ③ will be turned on if charge completed.

7. Warranty

The tail light is covered by one year warranty.

DongGuan Enfitnix Technology Co., Ltd.

Customer Service: ecs@enfitnix.com

Tel: +86 (0)768 2223 4810

Please Note: Specification are subject to change without notices.

Made In China

CubeLiteII User Manual
